Description

VOGUISH. BRILLIANT. POWERFUL.

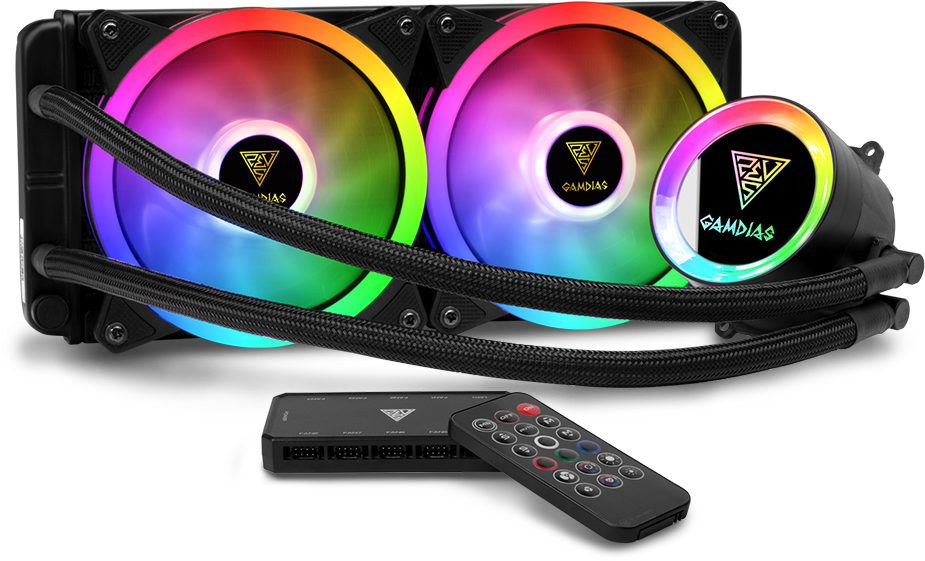

The CHIONE M2-240R features a trio-looped ARGB fan with silent hydraulic bearing, a durable Teflon tube, and an RGB mirror-finished pump along with an auxiliary AEOLUS box and remote providing customizable lighting and adaptive cooling performance.

THRICE THE FUN

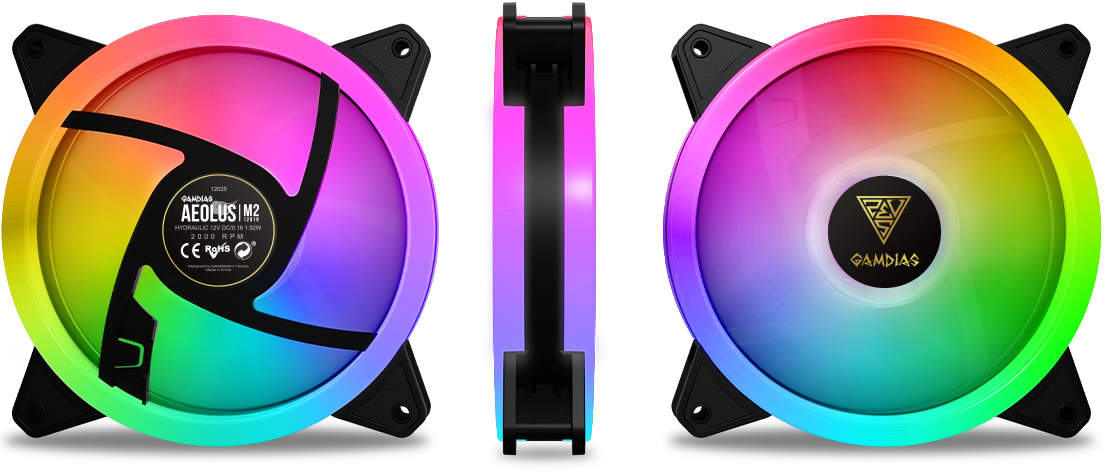

CHIONE M2 takes a Trio-loop design with three fully addressable RGB lighting rings around the front, back, and center of the fan.

MIRROR STYLE PUMP

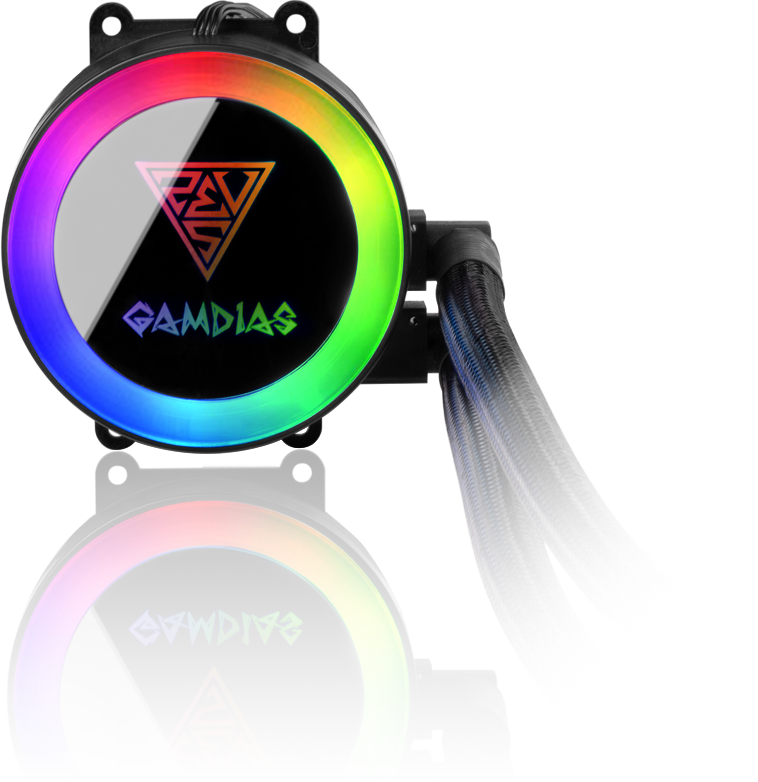

The unique and polished mirror pump design gives a clean finish to your set-up by fully reflecting the beauty and luminance of your case build.

DURABLE AND ELEGANT

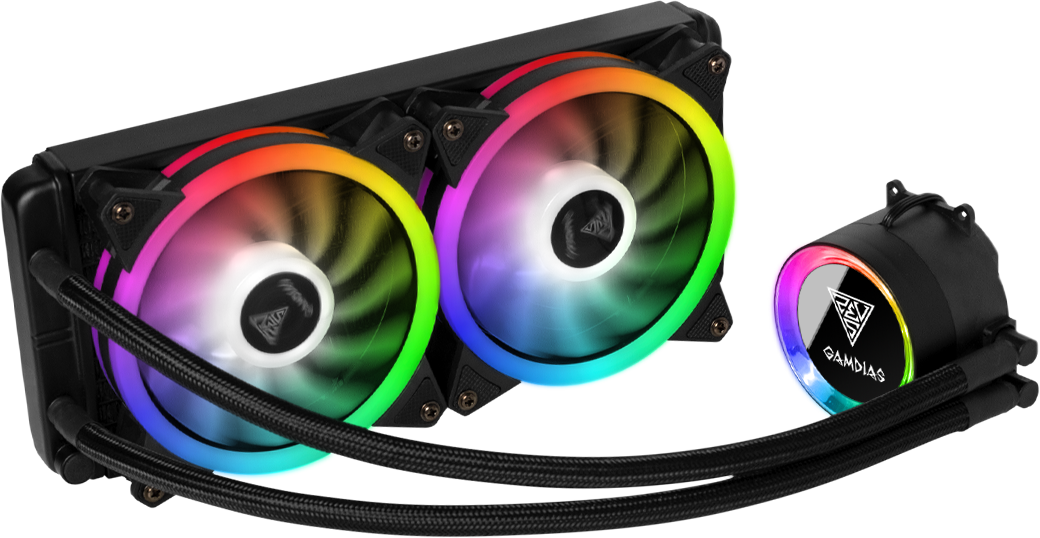

The cooler comes with the leak-free Teflon Tube which makes this All-in-One system extremely low maintenance.

INTEGRATE YOUR STYLE

With the magnetic AEOLUS box, you can add up to 8 fans & 2 additional LED strips and easily sync and customize your fan speed and lighting.

SPECIFICATIONS
Model
CHIONE M2-240R
Package Contents
Cooler : 1
Fan : 2
Remote Control : 1
AEOLUS Box : 1
Thermal Grease : 1
Mounting Kit : Yes
LIQUID COOLER – FAN
Dimensions : 120 x 120 x 25 mm
Speed : 800 – 1800 RPM±10%
Noise Level : 15 – 29 dBA
Air Flow : 67CFM
Air Pressure : 2.23 mmH2O
Bearing : Hydraulic
Rated Voltage : 12 V (Fan) / 5V(LED)
Connector : 8 pin
Support PWM Control : No
LIQUID COOLER
Radiator Dimensions : 274 x 119 x 27 mm
Tube Material : Teflon
Base Plate Material : Copper
Radiator Material : Aluminum
Sleeved Tube : Yes
Pump Rated Voltage : 12 V (Pump) / 5V(LED)
Pump Connector : 3 Pin
Compatibility : LGA2066 / 2011-v3 / 2011 / 1700 / 1151 / 1150 / 1155 / 1156 / 1366 / AM4 / AM3+ / AM3 / AM2+ / AM2 / FM2+ / FM2 / FM1 / LGA1200
TDP : 230W ±10%
Support Motherboard RGB Sync Connectors : 5V 3-pin addressable (digital) RGB header Only
LIQUID COOLER – REMOTE CONTROL
Selectable Fan Speeds : Yes
Selectable Light Speeds : Yes
Selectable Brightness : Yes
LIQUID COOLER – CONTROL BOX
Model : AEOLUS Box
Dimensions : 92 x 46 x 13 mm
Power Connector : SATA
Support LED type : 5V 3-pin Addressable (Digital) LED
Support Daisy Chain : Yes
Built-In Magnet : Yes
