Description

VOGUISH. BRILLIANT. POWERFUL.

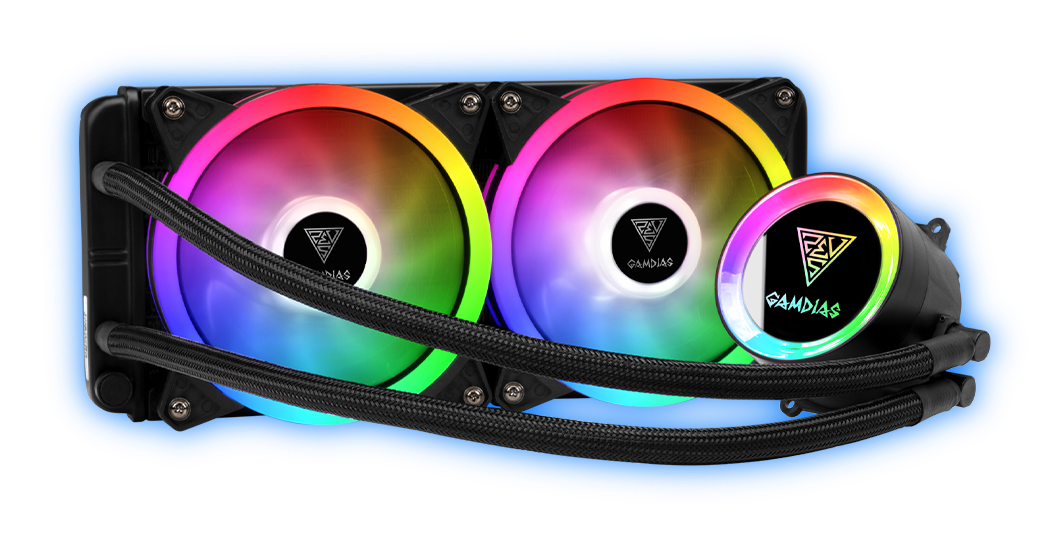

The CHIONE M2-240 LITE is a powerful and durable liquid cooler featuring trio-looped ARGB fans with silent hydraulic bearing, a durable Teflon tube, and an RGB mirror-finished pump to provide brilliant lighting and exceptional cooling performance.

THRICE THE FUN

CHIONE M2 takes a Trio-loop design with three fully addressable RGB lighting rings around the front, back, and center of the fan.

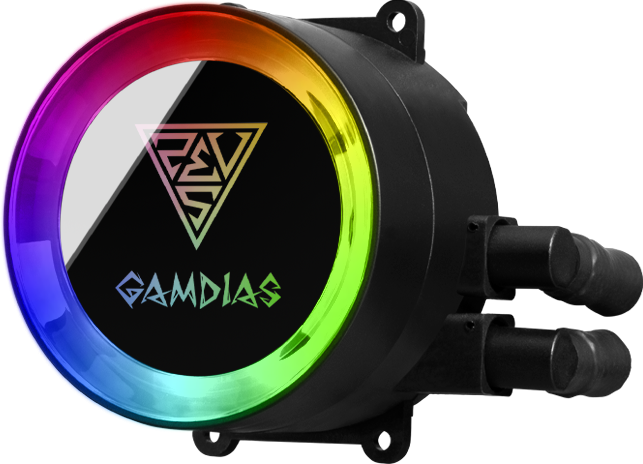

MIRROR STYLE PUMP

The unique and polished mirror pump design gives a clean finish to your set-up by fully reflecting the beauty and luminance of your case build

DURABLE AND ELEGANT

The cooler comes with the leak-free Teflon Tube which makes this All-in-One system extremely low maintenance.

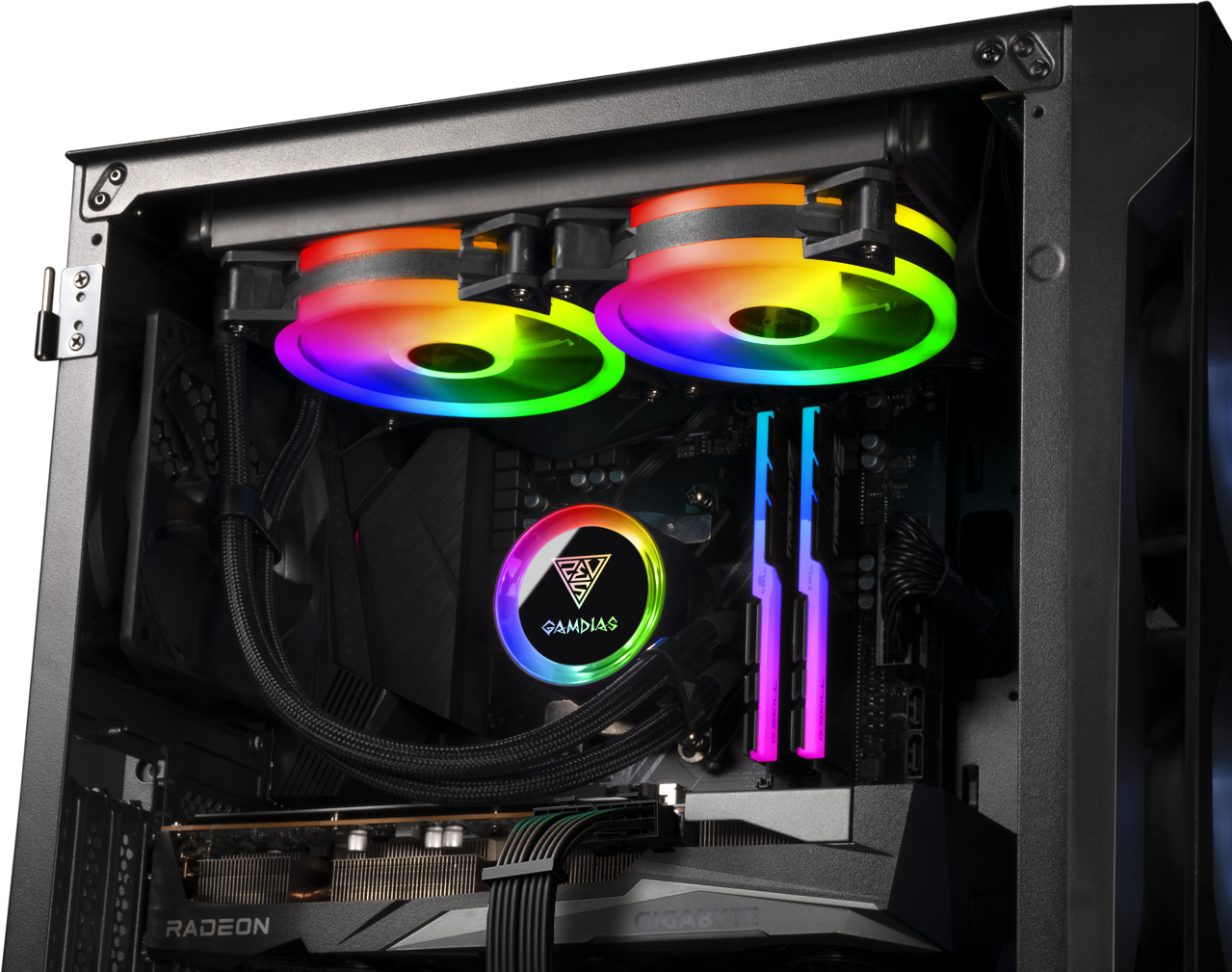

STRAIGHTFORWARD INSTALLATION

CHIONE does not take much space and offers different options for installation. The compact design makes the installation and maintenance simple

SPECIFICATIONS
Model
CHIONE M2-240 LITE
Package Contents
Cooler : 1
Fan : 2
Thermal Grease : 1
Mounting Kit : Yes
LIQUID COOLER – FAN
Dimensions : 120 x 120 x 25 mm
Speed : 1800 RPM±10%
Noise Level : 29 dBA
Air Flow : 69 CFM
Air Pressure : 2.7 mmH2O
Bearing : Hydraulic
Rated Voltage : 12 V (Fan) / 5V(LED)
Connector : SATA
Support PWM Control : No
LIQUID COOLER
Radiator Dimensions : 274 x 119 x 27 mm
Tube Material : Teflon
Base Plate Material : Copper
Radiator Material : Aluminum
Sleeved Tube : Yes
Pump Rated Voltage : 12 V (Pump) / 5V(LED)
Pump Connector : 3 Pin
Compatibility :LGA2066 / 2011-v3 / 2011 / 1700 / 1151 / 1150 / 1155 / 1156 / 1366 / AM4 / AM3+ / AM3 / AM2+ / AM2 / FM2+ / FM2 / FM1 / LGA1200
TDP : 230W ±10%
Support Motherboard RGB Sync Connectors : 5V 3-pin addressable (digital) RGB header Only
